Helpers
Helper components provide utility functions to help manage data, tasks, and other components in your flow.
Calculator
The Calculator component performs basic arithmetic operations on mathematical expressions. It supports addition, subtraction, multiplication, division, and exponentiation operations.
For an example of using this component in a flow, see the Python interpreter component.
Parameters
Name | Type | Description |
---|---|---|
expression | String | The arithmetic expression to evaluate, such as 4*4*(33/22)+12-20 . |
Outputs
Name | Type | Description |
---|---|---|
result | Data | The calculation result as a Data object containing the evaluated expression. |
Current date
The Current Date component returns the current date and time in a selected timezone. This component provides a flexible way to obtain timezone-specific date and time information within a Langflow pipeline.
Parameters
Inputs
Name | Type | Description |
---|---|---|
timezone | String | The timezone for the current date and time. |
Outputs
Name | Type | Description |
---|---|---|
current_date | String | The resulting current date and time in the selected timezone. |
Message history
Prior to Langflow 1.5, this component was two separate components called Chat History and Message Store.
This component provides combined chat history and message store functionality. This component can use Langflow's SQLite database or external memory to store and retrieve chat messages.
Chat memory is distinct from vector store memory, because it is built specifically for storing and retrieving chat messages from databases.
Memory components provide access to their respective external databases as memory. This allows Large Language Models (LLMs) or agents to access external memory for persistence and context retention.
In Retrieve mode, this component retrieves chat messages from Langflow tables or external memory. In Store mode, this component stores chat messages in Langflow tables or external memory.

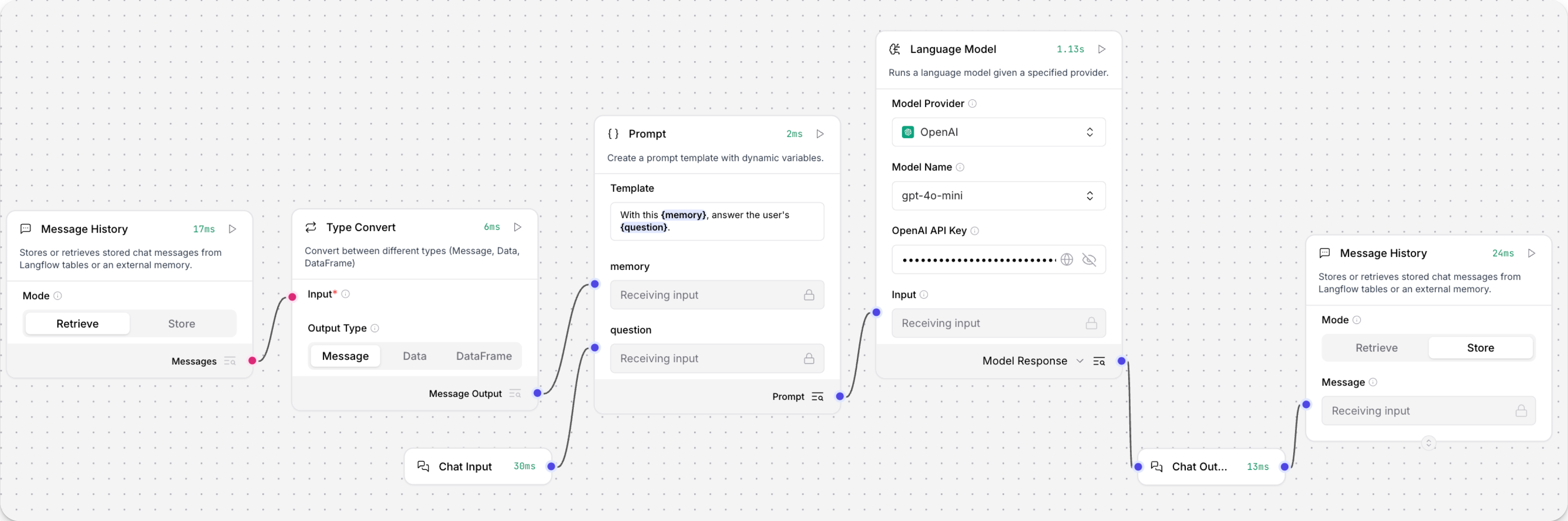

In this example, one Message History component stores the complete chat history in a local Langflow table, which the other Message History component retrieves as context for the LLM to answer each question.
To configure Langflow to store and retrieve messages from an external database instead of local Langflow memory, follow these steps.
- Add two Memory components to your flow. This example uses Redit Chat Memory.
- To enable external memory ports, in both Memory components, click Controls, and then enable External Memory.
- Connect the Memory ports to the Message History components.

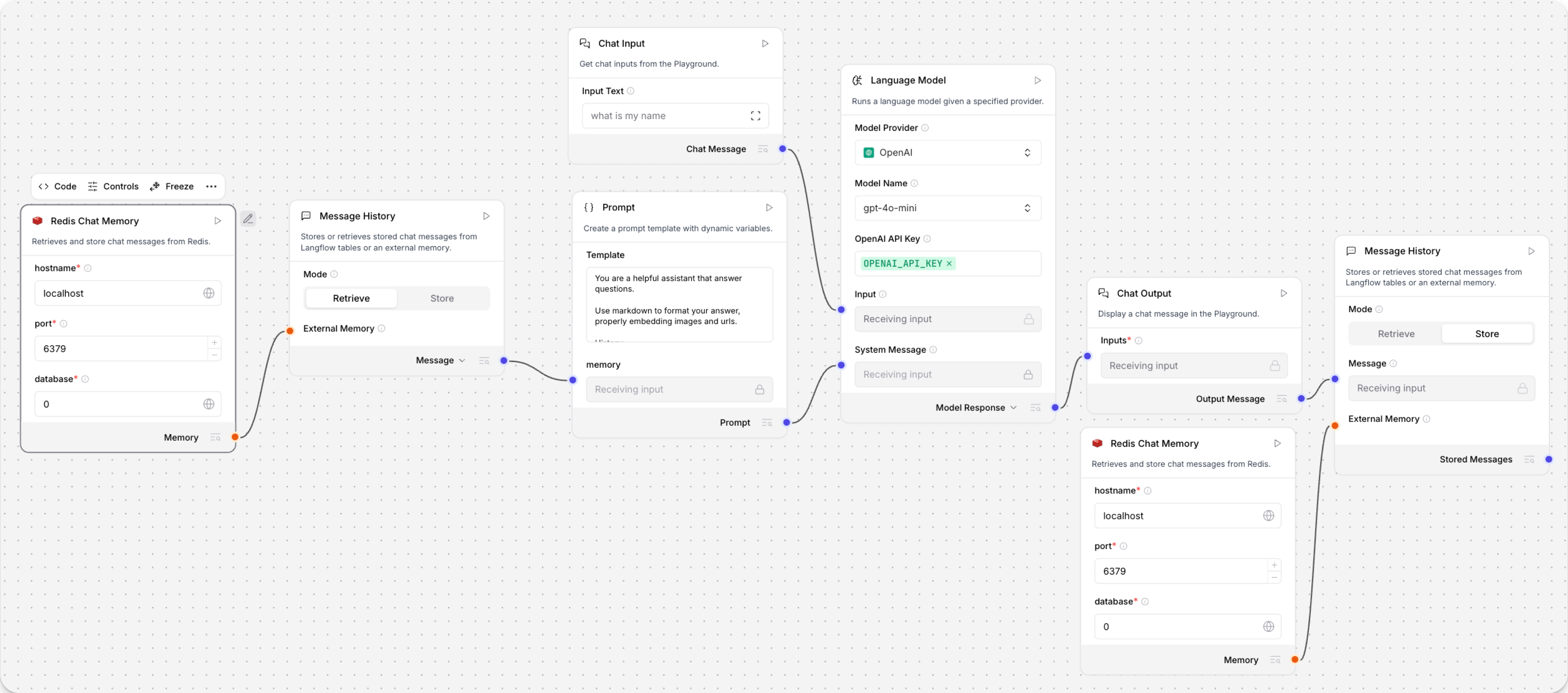

The flow looks like this:
- In the Redis Chat Memory components, add your connection information. These values are found in your Redis deployment. For more information, see the Redis documentation.
For more information on configuring memory in Langflow, see Memory.
Parameters
Inputs
Name | Type | Description |
---|---|---|
memory | Memory | Retrieve messages from an external memory. If empty, the Langflow tables are used. |
sender | String | Filter by sender type. |
sender_name | String | Filter by sender name. |
n_messages | Integer | The number of messages to retrieve. |
session_id | String | The session ID of the chat. If empty, the current session ID parameter is used. |
order | String | The order of the messages. |
template | String | The template to use for formatting the data. It can contain the keys {text} , {sender} or any other key in the message data. |
Outputs
Name | Type | Description |
---|---|---|
messages | Data | The retrieved messages as Data objects. |
messages_text | Message | The retrieved messages formatted as text. |
dataframe | DataFrame | A DataFrame containing the message data. |
Legacy components
Legacy components are available for use but are no longer supported.
Create List
This component dynamically creates a record with a specified number of fields.
Parameters
Inputs
Name | Type | Description |
---|---|---|
n_fields | Integer | The number of fields to be added to the record. |
text_key | String | The key used as text. |
Outputs
Name | Type | Description |
---|---|---|
list | List | The dynamically created list with the specified number of fields. |
ID Generator
This component generates a unique ID.
Parameters
Inputs
Name | Type | Description |
---|---|---|
unique_id | String | The generated unique ID. |
Outputs
Name | Type | Description |
---|---|---|
id | String | The generated unique ID. |
Output Parser
This component transforms the output of a language model into a specified format. It supports CSV format parsing, which converts LLM responses into comma-separated lists using Langchain's CommaSeparatedListOutputParser
.
This component only provides formatting instructions and parsing functionality. It does not include a prompt. You'll need to connect it to a separate Prompt component to create the actual prompt template for the LLM to use.
Both the Output Parser and Structured Output components format LLM responses, but they have different use cases.
The Output Parser is simpler and focused on converting responses into comma-separated lists. Use this when you just need a list of items, for example ["item1", "item2", "item3"]
.
The Structured Output is more complex and flexible, and allows you to define custom schemas with multiple fields of different types. Use this when you need to extract structured data with specific fields and types.
To use this component:
- Create a Prompt component and connect the Output Parser's
format_instructions
output to it. This ensures the LLM knows how to format its response. - Write your actual prompt text in the Prompt component, including the
{format_instructions}
variable. For example, in your Prompt component, the template might look like:
_10{format_instructions}_10Please list three fruits.
-
Connect the
output_parser
output to your LLM model. -
The output parser converts this into a Python list:
["apple", "banana", "orange"]
.
Parameters
Inputs
Name | Type | Description |
---|---|---|
parser_type | String | The parser type. Currently supports "CSV". |
Outputs
Name | Type | Description |
---|---|---|
format_instructions | String | Pass to a prompt template to include formatting instructions for LLM responses. |
output_parser | Parser | The constructed output parser that can be used to parse LLM responses. |
