Data Operations

tip

Prior to Langflow 1.11.0, text, JSON, and table processing were handled by separate Text Operations, JSON Operations, and Table Operations components.

The Data Operations component performs operations on Message, JSON, or Table inputs. Set Input Type to choose which operation set is available. The output type depends on the selected operation and input type.

Use the Data Operations component in a flow

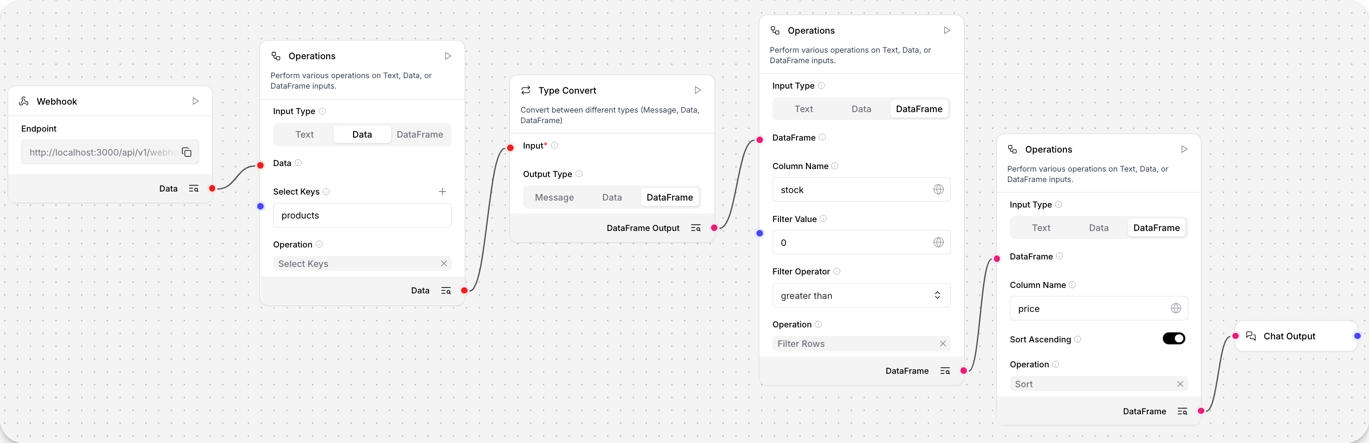

This example demonstrates a complete data transformation pipeline using multiple Data Operations components with different input types.

Send a sample JSON message to the webhook, and the pipeline extracts the products array, filters products with stock greater than zero, sorts them by price, and displays the filtered results.

1. Add a Webhook component to receive JSON data.

2. Add a Data Operations component to select keys. Set Input Type to JSON, Operation to Select Keys, and enter the key products to extract the products array.

3. Add a Type Convert component to convert JSON to Table. Set Input Type to JSON and Output Type to Table.

4. Add another Data Operations component to filter rows. Set Input Type to Table, Operation to Filter, Column Name to stock, Filter Operator to greater than, and Filter Value to 0.

5. Add another Data Operations component to sort the results. Set Input Type to Table, Operation to Sort, Column Name to price, and enable Sort Ascending.

6. Add a Chat Output component to display the results.

7. To test your flow, send the following JSON to your webhook endpoint. Replace YOUR_FLOW_ID with the UUID of your flow.

   curl -X POST "http://localhost:7860/api/v1/webhook/YOUR_FLOW_ID" \
     -H "Content-Type: application/json" \
     -d '{
       "store": "Electronics Warehouse",
       "location": "New York",
       "products": [
         {
           "name": "Widget A",
           "price": 29.99,
           "stock": 10,
           "category": "Electronics"
         },
         {
           "name": "Widget B",
           "price": 49.99,
           "stock": 5,
           "category": "Electronics"
         },
         {
           "name": "Widget C",
           "price": 19.99,
           "stock": 0,
           "category": "Electronics"
         },
         {
           "name": "Widget D",
           "price": 39.99,
           "stock": 15,
           "category": "Electronics"
         },
         {
           "name": "Widget E",
           "price": 59.99,
           "stock": 3,
           "category": "Electronics"
         }
       ]
     }'

The result should be a Table of in-stock products sorted by price in the Playground. To inspect each Data Operations component's transformation step in the pipeline, click Inspect output.

Examples

Text

Clean text from a language model

The following example demonstrates how to use a Data Operations component to clean text output from a language model before passing it to another component:

1. Create a flow with a Language Model component and a Data Operations component, and then connect the Language Model component's Message output to the Data Operations component's Text Input.

   All text operations require a text string as input. If the preceding component doesn't produce Message or text output, you can use the Type Convert component to reformat the data first.

2. Set Input Type to Text, and then select Text Clean in the Operation field.

   tip

   You can select only one operation. If you need to perform multiple operations, chain multiple Data Operations components together to execute each operation in sequence.

3. Enable Remove Extra Spaces and Remove Empty Lines to normalize the model's output.

4. Optional: Connect the output to a Chat Output component to view the result in the Playground.

5. Click Run component on the Data Operations component, and then click Inspect output to view the result.

JSON

Select keys from a webhook payload

The following example demonstrates how to use a Data Operations component in a flow using data from a webhook payload:

1. Create a flow with a Webhook component and a Data Operations component, and then connect the Webhook component's output to the Data Operations component's JSON input.

   All JSON operations require at least one JSON input from another component. If the preceding component doesn't produce JSON output, you can use another component, such as the Type Convert component, to reformat the data before passing it to the Data Operations component. Alternatively, you could consider using a component that is designed to process the original data type, such as the Parser component or another Data Operations component with Input Type set to Table.

2. Set Input Type to JSON, and then select Select Keys in the Operation field.

   tip

   You can select only one operation. If you need to perform multiple operations on the data, you can chain multiple Data Operations components together to execute each operation in sequence. For more complex multi-step operations, consider using a component like the Smart Transform component.

3. Under Select Keys, add keys for name, username, and email. Click Add more to add a field for each key.

   For this example, assume that the webhook will receive consistent payloads that always contain name, username, and email keys. The Select Keys operation extracts the value of these keys from each incoming payload.

4. Optional: If you want to view the output in the Playground, connect the Data Operations component's output to a Chat Output component.



5. To test the flow, send the following request to your flow's webhook endpoint. For more information about the webhook endpoint, see Trigger flows with webhooks.

   curl -X POST "http://$LANGFLOW_SERVER_URL/api/v1/webhook/$FLOW_ID" \
   -H "Content-Type: application/json" \
   -H "x-api-key: $LANGFLOW_API_KEY" \
   -d '{
     "id": 1,
     "name": "Leanne Graham",
     "username": "Bret",
     "email": "Sincere@april.biz",
     "address": {
       "street": "Main Street",
       "suite": "Apt. 556",
       "city": "Springfield",
       "zipcode": "92998-3874",
       "geo": {
         "lat": "-37.3159",
         "lng": "81.1496"
       }
     },
     "phone": "1-770-736-8031 x56442",
     "website": "hildegard.org",
     "company": {
       "name": "Acme-Corp",
       "catchPhrase": "Multi-layered client-server neural-net",
       "bs": "harness real-time e-markets"
     }
   }'

6. To view the JSON resulting from the Select Keys operation, do one of the following:

   • If you attached a Chat Output component, open the Playground to see the result as a chat message.
   • Click Inspect output on the Data Operations component.

Path Selection operation

Use the Path Selection operation to extract values from nested JSON structures with dot notation paths.

1. Set Input Type to JSON, and then select Path Selection in the Operation field.

2. In the JSON to Map field, enter your JSON structure.

   This example uses the following JSON structure.

   {
     "user": {
       "profile": {
         "name": "John Doe",
         "email": "john@example.com"
       },
       "settings": {
         "theme": "dark"
       }
     }
   }

   The Select Path dropdown auto-populates with available paths.

3. In the Select Path dropdown, select the path. You can select paths such as .user.profile.name to extract "John Doe", or select .user.settings.theme to extract "dark".

JQ Expression operation

Use the JQ Expression operation to use the jq query language to perform more advanced JSON filtering.

1. Set Input Type to JSON, and then select JQ Expression in the Operation field.

2. In the JQ Expression field, enter a jq filter to query against the Data Operations component's JSON input.

   For this example JSON structure, enter expressions like .user.profile.name to extract "John Doe", .user.profile | {name, email} to project fields to a new object, or .user.profile | tostring to convert the field to a string.

   {
     "user": {
       "profile": {
         "name": "John Doe",
         "email": "john@example.com"
       },
       "settings": {
         "theme": "dark"
       }
     }
   }

Table

Extract and process an API response

The following example flow uses five components to extract JSON from an API response, transform it to a Table, and then perform further processing on tabular data using a Data Operations component. The sixth component, Chat Output, is optional in this example. It only serves as a convenient way for you to view the final output in the Playground, rather than inspecting the component logs.

If you want to use this example to test the Data Operations component, do the following:

1. Create a flow with the following components:

   • API Request
   • Language Model
   • Smart Transform
   • Type Convert

2. Configure the Smart Transform component and its dependencies:

   • API Request: Configure the API Request component to get JSON data from an endpoint of your choice, and then connect the API Response output to the Smart Transform component's JSON input.
   • Language Model: Select your preferred provider and model, and then enter a valid API key. Change the output to Language Model, and then connect the LanguageModel output to the Smart Transform component's Language Model input.
   • Smart Transform: In the Instructions field, enter natural language instructions to extract data from the API response. Your instructions depend on the response content and desired outcome. For example, if the response contains a large result field, you might provide instructions like explode the result field out into a JSON object.

3. Convert the Smart Transform component's output from JSON to Table:

   1. Connect the Filtered Data output to the Type Convert component's JSON input.
   2. Set the Type Convert component's Output Type to Table.

4. Add a Data Operations component to the flow, set Input Type to Table, and then connect Table output from the Type Convert component to the Table input.

5. In the Operation field, select the operation you want to perform on the incoming Table. For example, the Filter operation filters the rows based on a specified column and value.

   tip

   You can select only one operation. If you need to perform multiple operations on the data, you can chain multiple Data Operations components together to execute each operation in sequence. For more complex multi-step operations, like dramatic schema changes or pivots, consider using an LLM-powered component, like the Structured Output component or Smart Transform component, as a replacement or preparation for the Data Operations component.

   If you're following along with the example flow, select any operation that you want to apply to the data that was extracted by the Smart Transform component. To view the contents of the incoming Table, click Run component on the Type Convert component, and then Inspect output. If the Table seems malformed, click Inspect output on each upstream component to determine where the error occurs, and then modify your flow's configuration as needed. For example, if the Smart Transform component didn't extract the expected fields, modify your instructions or verify that the given fields are present in the API Response output.

6. Configure the operation's parameters. The specific parameters depend on the selected operation. For example, if you select the Filter operation, you must define a filter condition using the Column Name, Filter Value, and Filter Operator parameters. For more information, see Table operations.

7. To test the flow, click Run component on the Data Operations component, and then click Inspect output to view the new Table created from the operation.

   If you want to view the output in the Playground, connect the Data Operations component's output to a Chat Output component, rerun the Data Operations component, and then click Playground.

For another example, see Conditional looping.

Data Operations parameters

Many parameters are conditional based on the selected Input Type and Operation.

Some parameters are hidden by default in the visual editor. You can modify all component parameters through the component inspection panel that appears when you select a component.

Text

Available when Input Type is set to Text. Most text operations return a Message. Word Count returns a JSON object, and Text to DataFrame returns a Table.

Name	Display Name	Info
text_input	Text Input	Input parameter. The text string to process. Required for all operations.
operation	Operation	Input parameter. The operation to perform on the text. See Available text operations.
case_type	Case Type	Input parameter. The case conversion to apply. Options: uppercase, lowercase, title, capitalize, swapcase. Default: lowercase. Only shown for Case Conversion.
search_pattern	Search Pattern	Input parameter. The text or regex pattern to find. Only shown for Text Replace.
replacement_text	Replacement Text	Input parameter. The text to substitute for each match. Only shown for Text Replace.
use_regex	Use Regex	Input parameter. If enabled, treats Search Pattern as a regular expression. Default: Disabled. Only shown for Text Replace.
extract_pattern	Extract Pattern	Input parameter. The regular expression pattern to match against the text. Only shown for Text Extract.
max_matches	Max Matches	Input parameter. Maximum number of matches to return. Default: 10. Only shown for Text Extract.
head_characters	Characters from Start	Input parameter. Number of characters to return from the beginning of the text. Must be non-negative. Default: 100. Only shown for Text Head.
tail_characters	Characters from End	Input parameter. Number of characters to return from the end of the text. Must be non-negative. Default: 100. Only shown for Text Tail.
strip_mode	Strip Mode	Input parameter. Which side(s) of the text to strip. Options: both (default), left, right. Only shown for Text Strip.
strip_characters	Characters to Strip	Input parameter. Specific characters to remove. Leave empty to strip whitespace. Only shown for Text Strip.
text_input_2	Second Text Input	Input parameter. The second text string to join with the first. Only shown for Text Join.
remove_extra_spaces	Remove Extra Spaces	Input parameter. Collapse multiple consecutive spaces into a single space. Default: Enabled. Only shown for Text Clean.
remove_special_chars	Remove Special Characters	Input parameter. Remove all characters except alphanumeric and spaces. Default: Disabled. Only shown for Text Clean.
remove_empty_lines	Remove Empty Lines	Input parameter. Remove blank lines from the text. Default: Disabled. Only shown for Text Clean.
table_separator	Table Separator	Input parameter. The character used to delimit columns. Default: |. Only shown for Text to DataFrame.
has_header	Has Header	Input parameter. Whether the first row is a header row. Default: Enabled. Only shown for Text to DataFrame.
count_words	Count Words	Input parameter. Include word count and unique word count in the output. Default: Enabled. Only shown for Word Count.
count_characters	Count Characters	Input parameter. Include character count (with and without spaces) in the output. Default: Enabled. Only shown for Word Count.
count_lines	Count Lines	Input parameter. Include total and non-empty line count in the output. Default: Enabled. Only shown for Word Count.

Available text operations

Name	Required Inputs	Output	Process
Word Count	None	JSON	Counts words, unique words, characters, and lines in the text.
Case Conversion	case_​type	Message	Converts the text to the specified case.
Text Replace	search_​pattern, replacement_​text, use_​regex	Message	Replaces occurrences of a pattern with replacement text.
Text Extract	extract_​pattern, max_​matches	Message	Extracts all substrings matching a regex pattern, returned as newline-separated text.
Text Head	head_​characters	Message	Returns the first n characters of the text.
Text Tail	tail_​characters	Message	Returns the last n characters of the text.
Text Strip	strip_​mode, strip_​characters	Message	Removes whitespace or specified characters from the edges of the text.
Text Join	text_​input_​2	Text, Message	Concatenates two text inputs separated by a newline.
Text Clean	remove_​extra_​spaces, remove_​special_​chars, remove_​empty_​lines	Message	Normalizes text by removing extra spaces, special characters, and empty lines.
Text to DataFrame	table_​separator, has_​header	Table	Converts a delimiter-separated text table into a Table.

JSON

Available when Input Type is set to JSON.

Name	Display Name	Info
data	JSON	Input parameter. The JSON object to operate on. Must be provided as JSON data type input generated by another component. If the preceding component doesn't produce JSON output, use the Type Convert component to reformat the data before passing it to the Data Operations component.
operation	Operation	Input parameter. The operation to perform on the data. See Available JSON operations.
select_keys_input	Select Keys	Input parameter. A list of keys to select from the data.
filter_key	Filter Key	Input parameter. The key to filter by.
operator	Comparison Operator	Input parameter. The operator to apply for comparing values.
filter_values	Filter Values	Input parameter. A list of values to filter by.
append_update_data	Append or Update	Input parameter. The data to append or update the existing data with.
remove_keys_input	Remove Keys	Input parameter. A list of keys to remove from the data.
rename_keys_input	Rename Keys	Input parameter. A list of keys to rename in the data.
mapped_json_display	JSON to Map	Input parameter. JSON structure to explore for path selection. Only applies to the Path Selection operation. For more information, see Path Selection operation.
selected_key	Select Path	Input parameter. The JSON path expression to extract values. Only applies to the Path Selection operation. For more information, see Path Selection operation.
query	JQ Expression	Input parameter. The jq expression for advanced JSON filtering and transformation. Only applies to the JQ Expression operation. For more information, see JQ Expression operation.

Available JSON operations

Name	Required Inputs	Process
Select Keys	select_​keys_​input	Selects specific keys from the data.
Literal Eval	None	Evaluates string values as Python literals.
Combine	None	Combines multiple JSON objects into one.
Filter Values	filter_​key, filter_​values, operator	Filters data based on key-value pair.
Append or Update	append_​update_​data	Adds or updates key-value pairs.
Remove Keys	remove_​keys_​input	Removes specified keys from the data.
Rename Keys	rename_​keys_​input	Renames keys in the data.
Path Selection	mapped_​json_​display, selected_​key	Extracts values from nested JSON structures using path expressions.
JQ Expression	query	Performs advanced JSON queries using jq syntax for filtering, projections, and transformations.

Table

Available when Input Type is set to Table.

Most Table parameters are conditional because they only apply to specific operations. The only permanent parameters are Table (df), which is the Table input, and Operation (operation), which is the operation to perform on the Table. Once you select an operation, the conditional parameters for that operation appear on the Data Operations component.

Table operations

Select an operation for parameter details.

Add Column

The Add Column operation allows you to add a new column to the Table with a constant value.

The parameters are New Column Name (new_column_name) and New Column Value (new_column_value).

Concatenate

The Concatenate operation combines multiple input Table objects into a single Table by stacking their rows vertically. For example, if you have Table A and Table B, they are combined into one table with all rows from Table A, and then all rows from Table B.

This operation uses the Table (df) input. Connect multiple Table outputs to the same input to concatenate them. The output is a single Table containing the combined rows from all connected inputs.

Drop Column

The Drop Column operation allows you to remove a column from the Table, specified by Column Name (column_name).

Filter

The Filter operation allows you to filter the Table based on a specified condition. The output is a Table containing only the rows that matched the filter condition.

Provide the following parameters:

• Column Name (column_name): The name of the column to filter on.
• Filter Value (filter_value): The value to filter on.
• Filter Operator (filter_operator): The operator to use for filtering, one of equals (default), not equals, contains, not contains, starts with, ends with, greater than, or less than.

Head

The Head operation allows you to retrieve the first n rows of the Table, where n is set in Number of Rows (num_rows). The default is 5.

The output is a Table containing only the selected rows.

Merge

The Merge operation combines two input Table objects by matching rows that share the same value in a selected column. For example, if one table has id and name, and another has id and department, you can merge both tables on id to produce one table with id, name, and department.

Provide the following parameters:

• Left Table (left_dataframe): The primary table in the merge.
• Right Table (right_dataframe): The secondary table in the merge.
• Merge On Column (merge_on_column): The shared column used to match rows. This column must exist in both tables.
• Merge Type (merge_how): Controls which matched and unmatched rows are kept in the output. Use inner to keep only matching rows, left to keep all rows from the left table, right to keep all rows from the right table, or outer to keep all rows from both tables.

The output is a Table containing matched records from both inputs.

Rename Column

The Rename Column operation allows you to rename an existing column in the Table.

The parameters are Column Name (column_name), which is the current name, and New Column Name (new_column_name).

Replace Value

The Replace Value operation allows you to replace values in a specific column of the Table. This operation replaces a target value with a new value. All cells matching the target value are replaced with the new value in the new Table output.

Provide the following parameters:

• Column Name (column_name): The name of the column to modify.
• Value to Replace (replace_value): The value that you want to replace.
• Replacement Value (replacement_value): The new value to use.

Select Columns

The Select Columns operation allows you to select one or more specific columns from the Table.

Provide a list of column names in Columns to Select (columns_to_select). In the visual editor, click Add More to add multiple fields, and then enter one column name in each field.

The output is a Table containing only the specified columns.

Sort

The Sort operation allows you to sort the Table on a specific column in ascending or descending order.

Provide the following parameters:

• Column Name (column_name): The name of the column to sort on.
• Sort Ascending (ascending): Whether to sort in ascending or descending order. If enabled (true), sorts in ascending order; if disabled (false), sorts in descending order. Default: Enabled (true)

Tail

The Tail operation allows you to retrieve the last n rows of the Table, where n is set in Number of Rows (num_rows). The default is 5.

The output is a Table containing only the selected rows.

Drop Duplicates

The Drop Duplicates operation removes rows from the Table by identifying all duplicate values within a single column.

The only parameter is the Column Name (column_name).

When the flow runs, all rows with duplicate values in the given column are removed. The output is a Table containing all columns from the original Table, but only rows with non-duplicate values.

See also

• Parser
• Type Convert
• Smart Transform
