Docling
Langflow integrates with Docling through a bundle of components for parsing documents.
Install Docling dependency
You must install the Docling dependency to use the Docling components in Langflow.
- Langflow OSS
- Langflow Desktop
Install the Docling extra in Langflow OSS with uv pip install 'langflow[docling]'
.
To add a dependency to Langflow Desktop, add an entry for Docling to the application's requirements.txt
file.
For more information, see Install custom dependencies in Langflow Desktop.
Use Docling components in a flow
To learn more about content extraction with Docling, see the video tutorial Docling + Langflow: Document Processing for AI Workflows.

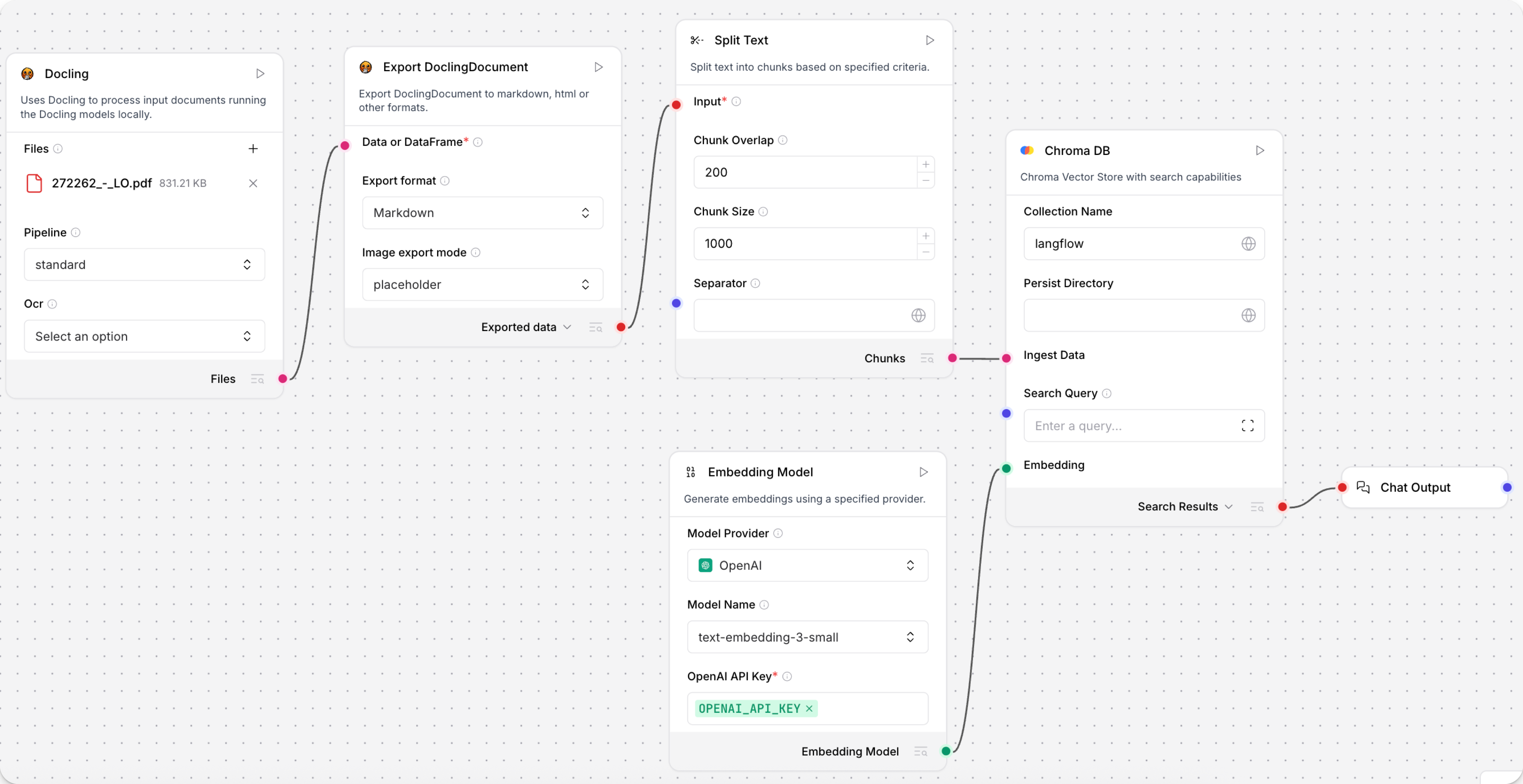

This example demonstrates how to use Docling components to split a PDF in a flow:
-
Connect a Docling and an Export DoclingDocument component to a Split Text component.
The Docling component loads the document, and the Export DoclingDocument component converts the
DoclingDocument
into the format you select. This example converts the document to Markdown, with images represented as placeholders. The Split Text component will split the Markdown into chunks for the vector database to store in the next part of the flow. -
Connect a Chroma DB vector store component to the Split Text component's Chunks output.
-
Connect an Embedding Model component to the Chroma DB component's Embedding port and a Chat Output component to view the extracted
DataFrame
. -
Add your OpenAI API key to the Embedding Model component.
-
Add a file to the Docling component.
-
To run the flow, click Playground.
The chunked document is loaded as vectors into your vector database.
Docling components
The following sections describe the purpose and configuration options for each component in the Docling bundle.
Docling language model
The Docling language model component ingest documents, and then uses Docling to process them by running the Docling models locally.
It outputs files
, which is the processed files with DoclingDocument
data.
Docling parameters
Name | Type | Description |
---|---|---|
files | File | The files to process. |
pipeline | String | Docling pipeline to use (standard, vlm). |
ocr_engine | String | OCR engine to use (easyocr, tesserocr, rapidocr, ocrmac). |
Docling Serve
The Docling Serve component ingests documents, and then uses Docling to process them by connecting to your instance of Docling Serve.
It outputs files
, which is the processed files with DoclingDocument
data.
Docling Serve parameters
Name | Type | Description |
---|---|---|
files | File | The files to process. |
api_url | String | URL of the Docling Serve instance. |
max_concurrency | Integer | Maximum number of concurrent requests for the server. |
max_poll_timeout | Float | Maximum waiting time for the document conversion to complete. |
api_headers | Dict | Optional dictionary of additional headers required for connecting to Docling Serve. |
docling_serve_opts | Dict | Optional dictionary of additional options for Docling Serve. |
Chunk DoclingDocument
The Chunk DoclingDocument component uses the DoclingDocument
chunkers to split a document into chunks.
It outputs the chunked documents as a DataFrame
.
Chunk DoclingDocument parameters
Name | Type | Description |
---|---|---|
data_inputs | Data/DataFrame | The data with documents to split in chunks. |
chunker | String | Which chunker to use (HybridChunker, HierarchicalChunker). |
provider | String | Which tokenizer provider (Hugging Face, OpenAI). |
hf_model_name | String | Model name of the tokenizer to use with the HybridChunker when Hugging Face is chosen. |
openai_model_name | String | Model name of the tokenizer to use with the HybridChunker when OpenAI is chosen. |
max_tokens | Integer | Maximum number of tokens for the HybridChunker. |
doc_key | String | The key to use for the DoclingDocument column. |
Export DoclingDocument
The Export DoclingDocument component exports DoclingDocument
to Markdown, HTML, and other formats.
It can output the exported data as either Data
or DataFrame
.
Export DoclingDocument parameters
Name | Type | Description |
---|---|---|
data_inputs | Data/DataFrame | The data with documents to export. |
export_format | String | Select the export format to convert the input (Markdown, HTML, Plaintext, DocTags). |
image_mode | String | Specify how images are exported in the output (placeholder, embedded). |
md_image_placeholder | String | Specify the image placeholder for markdown exports. |
md_page_break_placeholder | String | Add this placeholder between pages in the markdown output. |
doc_key | String | The key to use for the DoclingDocument column. |
